Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer

Product Categories
KUNSHAN YGT IMP.&EXP. CO.,LTD
Contact Now

Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer

Brand Name : YGT

Model Number : UHT-JUICE

Certification : CE

Place of Origin : CHINA

MOQ : 1 sets

Price : CUSTOM MADE

Payment Terms : L/C, T/T

Supply Ability : 10 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : export standard

Name : Tubular UHT sterilizer

Material : SUS304 Stainless Steel

Application : milk UHT tube sterilizer

Usage : milk,juice,paste,soft drink,ice

Contact Now

Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer
Product Description

This equipment is widely used in milk, fruit juice, tea drinks, milk drinks, tomato sauce, condiments, beer, ice cream, butter, egg products, solid powder products such as the original formula and update the product taste screening, color evaluation, stabilizer / emulsifier application, new product development and sample production. Complete simulation of industrial state sterilization machine production to this experimental UHT sterilization machine, heating, sterilization, cooling and heat recovery as a whole, to reflect the real production data, very suitable for various universities and research institutions and production units to obtain test data.

Product features:

This product consists of three parts, heating, sterilizing and cooling, and plate and tube sterilization can be combined in many ways with two separate heating and cooling sections for in-line homogenization. The temperature of the product can reach 140 degrees centigrade. All parts of the equipment in contact with the products are made of SUS 316 stainless steel. The sleeves, washers and seals are made of food grade fluorine rubber. DIN pipe fittings are used to connect the product pipes. In the display output, the UHT type sterilization machine configurable touch screen PLC semi automatic program control and manual control system, and can according to user requirements selection pressure gauge or digital sensor, the temperature of the product flow and other parameters to reflect the dynamic. Therefore, the equipment can simulate the vast majority of industrial production in the laboratory.

Model YGT-1 YGT-2 YGT-3 YGT-4
Production capacity(T/H) 1500 2000 3000 4000
Material inlet temperature℃ 25℃-40℃ 25℃-40℃ 25℃-40℃ 25℃-40℃
Warm Keeping time(s) 120-180 120-180 120-180 120-180
Sterilize temperature℃ 95-121 95-121 95-121 95-121

Material outlet temperature℃

25℃-35℃

25℃-35℃

25℃-35℃

25℃-35℃
Material inlet temperature℃ ＝30℃ ＝30℃ ＝30℃ ＝30℃
Steam pressure(MPA) 0.5MPA 0.5MPA 0.5MPA 0.5MPA
Steam consumption(KG/H) 150KG/H 210KG/H 280KG/H 350KG/H
Compressed air pressure(MPA)

0.6MPA

0.6MPA

0.6MPA

0.6MPA
Compressed air consumption(L/H))

50L/H

50L/H

60L/H

60L/H
Dimension 3500*2000*2500 3500*2500*2500 4500*2500*2200 5000*2000*2200
Equipment weight 1700KG 2000KG 2200KG 2500KG

Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular PasteurizerStainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer


Product Tags:

milk sterilizer machine



juice pasteurization equipment


Quality Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer for sale

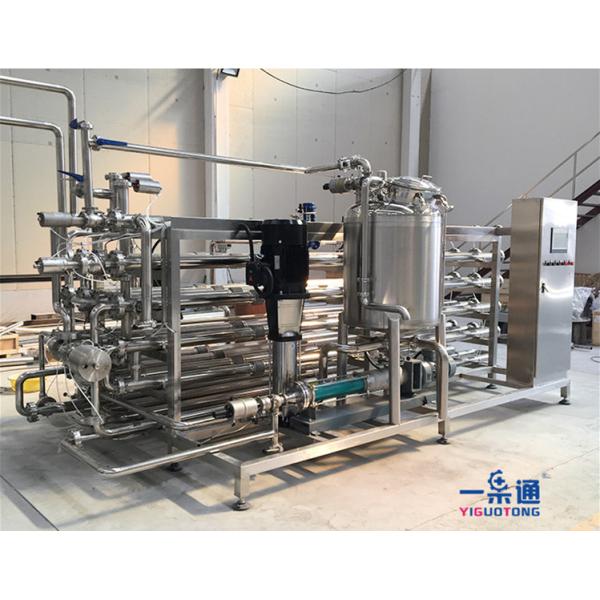

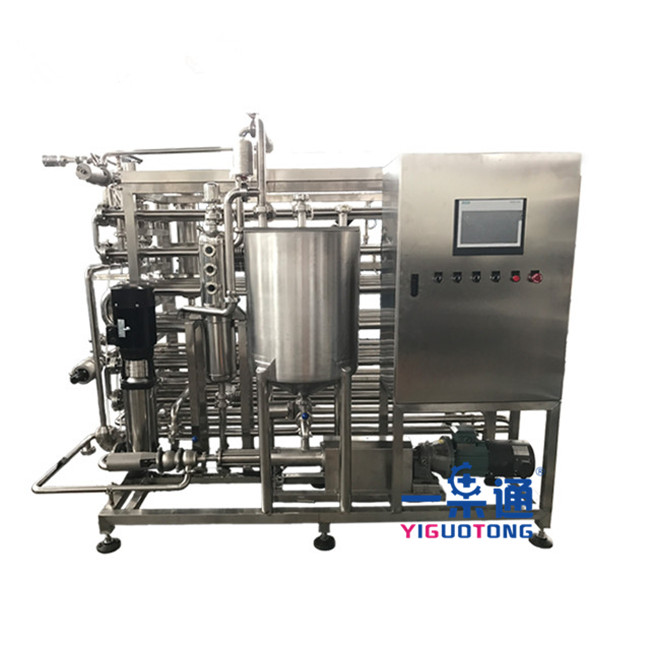

Stainless Steel UHT Sterilization Machine / Aseptic Milk Juice Tubular Pasteurizer Images
